Technical Specifications

Air Flow (max) 390m³/hr
Sensible Effectiveness (max) (approx) 80%
Electrical Consumption 110W/110W(max)
Weight 20.75kg
Filter Replaceable EU3
Insulation Thermal 5mm
Fan Type Backward curved centrifugal
Speed Control low/medium/high
Fan Speeds rpm 1590/2160/2510
Duct connection equivalent diameter 200m
Heat Exchanger Type Cross Flow
Heat Exchanger Material Robust Polymer Core

Heat Recovery Core

Dimensions mm 260x260x385
Weight 3.7kg
Material Polymer
Type Cross Flow

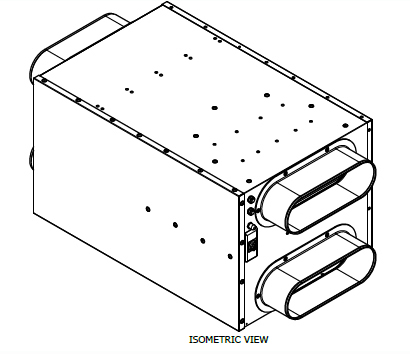

Isometric View of Ventsys Heat Exchanger Diagram
